Newland MT-93 Android PDA Barcode Scanner
- Android 13 OS: Easy to use with a robust, slim housing
- Powerful Octa-Core processor: Smooth performance for whole layers of work
- Wi-Fi 6 and 4G: Stable, fast and secure connection in busy environments
- Angled scan engine: Reduces discomfort and misloading during scanning
- IP67 certification: Fall-proof from 1.5 meters, Ideal for demanding working environments
NLS-MT93
| Model number | NLS-MT93-LHSG | ||
|---|---|---|---|
| Brand | Newland | ||
| Manufacturer | Newland AIDC | ||
| OS | Android 13 | ||
| CPU | 64bit, Octa-Core 2.2GHz | ||
| Memory | 4GB RAM, 64GB ROM | ||
| External dimensions | W 74 × D 15.9 × H 159mm | ||
| weight |
277g (including battery) 322g (including belt, case and battery) |
||
| display | 5.5 inch (720x1440), capacitive touch panel, Gorilla Glass | ||
| Keypad | 7 keys (including side keys) | ||
| notification | Vibrator, speaker, multi-color LED | ||
| battery | 3.85V, 5000mAh (removable) | ||
| Continuous operation time (approx.) | 12 hr | ||
| Charging time (approx.) | 2.5 hours | ||
| Interface | USB (terminal side / USB Type-C, host side / USB Type-A) | ||
| camera |
Front camera: 5MP Rear camera: 13MP, autofocus, with LED flashlight |
||
| media | Speaker, dual microphone, noise reduction | ||
| GPS | GPS(AGPS), GLONASS, BeiDou, Galileo | ||
| sensor |
Optical/proximity sensor, acceleration sensor, geomagnetic sensor, gyroscope sensor |
||
| Operating temperature | -20℃～50℃ | ||
| Storage temperature | -40℃～70℃ | ||
| Humidity | 5% to 95% (no condensation) | ||
| Drop resistance | 1.5m drop onto concrete (6x drop, 1 on each side) | ||
| Dustproof and waterproof | IP67 | ||
| Electrostatic Discharge | ±15kV (air discharge), ±8kV (direct discharge) | ||
| Wireless specifications | Wireless WAN |
2G: 850/900/1800/1900MHz 3G: WCDMA (B1,B2,B5,B8), CDMA: 1X EVDO (BC0), TD-SCDMA: B34/B39 4G: TD-LTE (B34,B38,B39,B40,B41), FDD-LTE (B1,B2,B3,B5,B7,B8,B20,B28 a&b) |
|
| Wireless LAN |
Supports 802.11a/b/g/n/ac/ax/k/v/r, 2.4GHz and 5GHz dual frequencies |
||
| Bluetooth | Bluetooth 5.2 BLE (Bluetooth Low Energy) | ||
| Card slots | Nano SIM x 2 | ||
| Reading code | 1D | JAN, EAN, Code39, Code128, Code49, Code16K, CodaBar(NW-7), GS1-128(UCC / EAN-128), AIM-128, EAN-8, UPC-A, UPC-E, Interleaved 2 of 5(ITF), ITF 6, ITF 14, Matrix 2 of 5, Industrial 25, Standard 2 of 5, ISSN, ISBN, Plessey, MSI Plessey, GS1 Datebar(RSS) | |
| 2D | GS1 Composite, QR Code, Micro QR, Data Matrix, Aztec, CS Code, Maxicode, Micro PDF, PDF 417, DotCode | ||
| Reading Distance |
JAN-13(13mil): 70-610mm Code39(5mil): 120-290mm QR Code(15mil): 55-410mm Data Matrix(10mil): 110-260mm PDF17(6.7mil): 110-230mm |
||

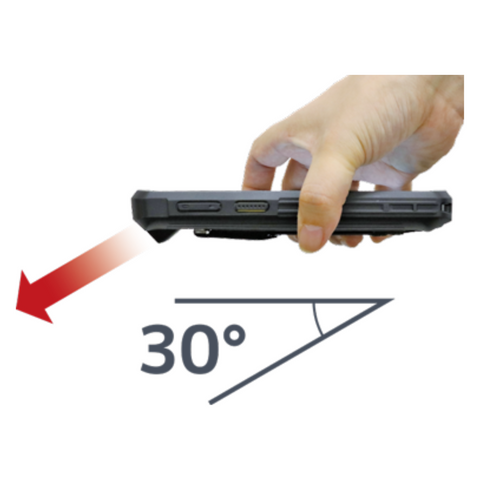

| Reading Angle | Horizontal downward 30 degrees | ||
| light source | White LED, red crosshair aimer | ||
| Google services | correspondence | ||
| NFC |
ISO14443A/B, ISO15693, ISO18000-3, MIFARE, FeliCa RF, Kovio, NFC Forum Type 1-4 tags |
||
| Certifications and Standards |
Specified wireless equipment (Technical Approval Mark) Laser safety standard: IEC60825-1 (Class 2) |
||
| Warranty period | 1 year | ||
| What's in the box | Battery, AC adapter, USB cable, protective cover | ||
*The specifications of the NLS-MT93 are subject to change.
This item is currently restocking. It may take up to 3 weeks to ship.
